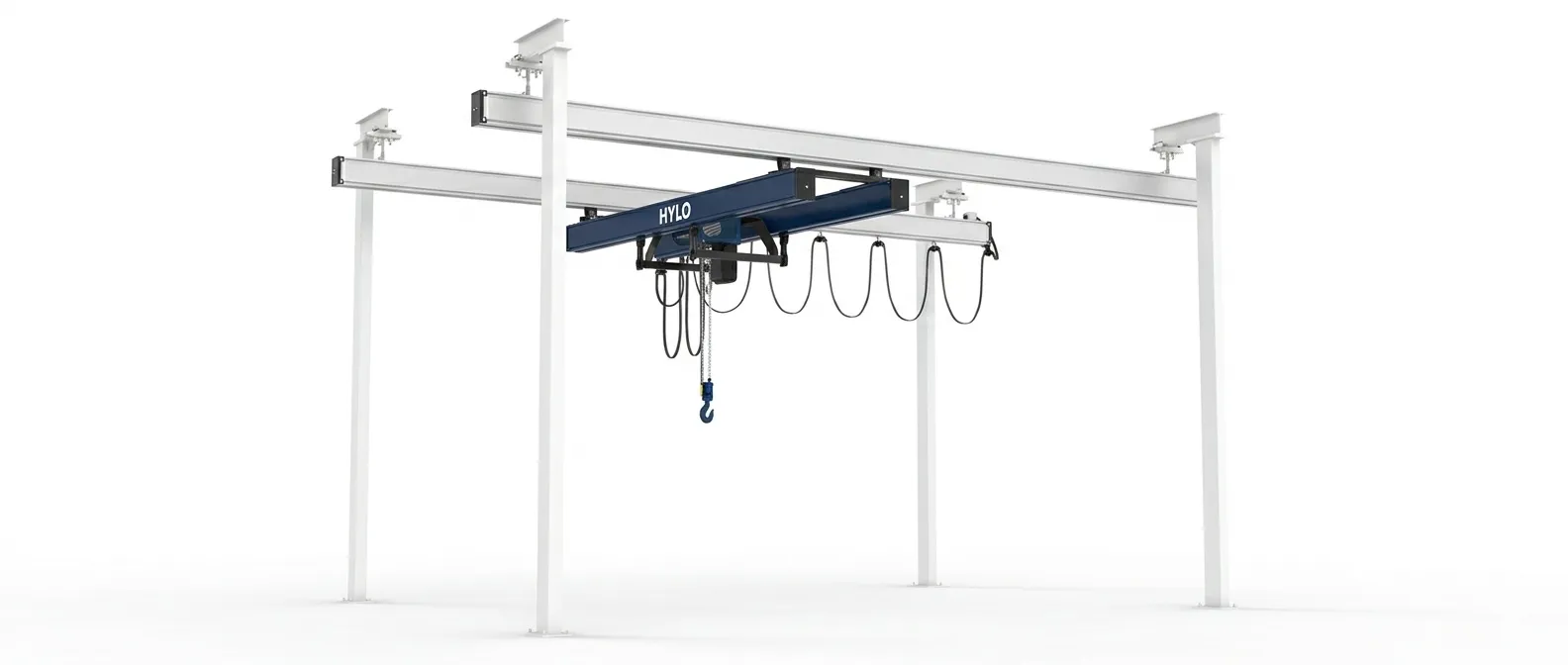

The featherweight champion of overhead material handling. Our aluminium KBK rail system is 60% lighter than steel, completely corrosion-proof and engineered for effortless manual operation — so your operators move loads faster, safer and without fatigue.
Traditional steel crane rails were designed for an era when raw strength was all that mattered. But today's manufacturing demands more: speed, precision, ergonomics and cleanliness. The Hylo Lifting aluminium KBK light crane rail system answers every one of those demands.
Built from precision-extruded aluminium alloy profiles, our aluminium KBK rail system weighs roughly 60% less than an equivalent steel setup. That single difference transforms operator experience. Loads that required motorised trolleys on steel rails glide effortlessly by hand on aluminium — cutting cycle times, reducing energy costs and eliminating operator fatigue across entire shifts.
The modular design means you can plan, expand or reconfigure your crane layout without structural overhaul. Each rail section, curve, switch and trolley is a plug-and-play component. Installation typically takes one to two days — a fraction of the time needed for conventional overhead crane systems.
Max Load Capacity
Lighter Than Steel
Corrosion Resistant
Certified Quality
Both systems use the proven KBK modular design. The right choice depends on your load requirements, environment and operational priorities.
| Parameter | Aluminium KBK Rail | Steel KBK Rail |
|---|---|---|
| Weight per metre | 1.2 – 3.5 kg/m | 3.5 – 9.5 kg/m |
| Max load capacity | Up to 1,000 kg | Up to 3,200 kg |
| Manual push force required | Very low — effortless | Moderate to high |
| Corrosion resistance | Excellent — naturally oxide-protected | Requires painting / galvanising |
| Clean room suitability | ISO Class 5–8 compliant | Not recommended |
| Maintenance | Virtually zero | Periodic inspection & coating |
| Cost | Higher upfront | Lower upfront |
| Best applications | Pharma, food, electronics, clean rooms, light assembly | Automotive, heavy assembly, warehouses, workshops |
Need help deciding? Talk to our engineers for a free site assessment.
Every element of the Hylo aluminium KBK rail system is designed to make your production line faster, safer and more ergonomic.
Precision-extruded aluminium alloy profiles weigh just 1.2 to 3.5 kg per metre — roughly 60% less than equivalent steel rail sections. Lower dead weight means smaller support structures and faster installation.
Operators can push and position loads with fingertip force. The dramatically reduced rolling resistance of aluminium profiles eliminates physical strain, reduces injury risk and sustains productivity across long shifts.
Aluminium forms a natural protective oxide layer that resists moisture, chemicals and salt air without any coatings or treatments. Ideal for wash-down areas, humid environments and coastal installations.
Modular plug-and-play components connect with precision-machined joints — no welding, no hot work. A complete aluminium KBK system can be assembled and operational in one to two days.
No painting, no lubrication, no corrosion treatment. The anodised aluminium surface stays clean and functional for decades with zero scheduled maintenance — drastically reducing total cost of ownership.
Aluminium profiles with precision-ground trolley tracks produce negligible noise during operation. This makes the system suitable for environments where low noise levels are mandatory, such as laboratories and clean rooms.
Detailed specifications for our aluminium KBK rail profiles. Custom configurations available on request.
| Profile | Load Capacity | Max Span | Material Grade | Weight / Metre | Trolley Compatibility |
|---|---|---|---|---|---|
| KBK-A 100 | Up to 250 kg | 4 m | EN AW-6063 T6 | 1.2 kg/m | KBK-A series trolley |
| KBK-A 140 | Up to 500 kg | 5 m | EN AW-6063 T6 | 2.1 kg/m | KBK-A series trolley |
| KBK-A 200 | Up to 1,000 kg | 6 m | EN AW-6082 T6 | 3.5 kg/m | KBK-A / universal trolley |
Specifications are indicative. Actual load ratings depend on span, suspension points and operating conditions. Contact our engineering team for project-specific calculations.
Aluminium KBK rails are the preferred choice in industries where cleanliness, low weight and ergonomic handling are non-negotiable.
GMP-compliant material handling for drug formulation, packaging and API manufacturing. The particle-free aluminium surface meets strict pharma hygiene requirements without any special coatings.
Corrosion-proof aluminium rails withstand daily wash-down cycles in meat, dairy, bakery and beverage processing plants. No rust contamination risk, no paint flaking into products.
Precise manual positioning of PCBs, display panels and sensitive components. The featherlight rail allows operators to place parts with sub-millimetre accuracy at high throughput rates.
ISO Class 5 through 8 clean room compatible. No particle generation, no lubricants, no outgassing. Trusted by semiconductor fabs, optics manufacturers and medical device companies.
Workstation crane systems for assembly lines handling components under 500 kg. Significantly reduces operator fatigue compared to manual lifting, improving both output and safety metrics.
Fast, silent handling of boxes, cartons and palletised goods on packaging lines. The quiet operation keeps noise levels well within occupational health limits even in enclosed spaces.
When you choose Hylo, you get more than a product. You get decades of engineering expertise, nationwide support and a commitment to quality that never wavers.
Every aluminium KBK rail system is manufactured under ISO quality management standards with full material traceability and load testing certification.
Over two decades of designing and installing light crane systems for India's most demanding industries, from automotive giants to pharma leaders.
Site surveys, installation and after-sales support across all of India. Our field engineers are never more than a call away from your facility.
A proven track record with over 250 successful crane system installations for blue-chip companies including Maruti Suzuki, Ashok Leyland and Indian Railways.
Looking for higher load capacities or a different crane configuration? Explore our full product range.
Heavy-duty KBK crane rails in cold-rolled steel profiles. Load capacities up to 3,200 kg for automotive, heavy manufacturing and warehouse operations.
Learn more → rotate_rightPillar-mounted and wall-mounted jib cranes offering 180° to 360° rotation. Ideal for workstation-level lifting, machine tending and maintenance bays.
Learn more →Common questions about aluminium KBK light crane rail systems answered by our engineering team.
An aluminium KBK rail system is a modular light crane rail constructed from extruded aluminium alloy profiles. The "KBK" designation refers to the standardised modular crane component system that allows rails, trolleys, suspensions and accessories to be combined in endless configurations. Aluminium KBK rails are approximately 60% lighter than steel equivalents, making them ideal for manual operation in environments where ergonomics, cleanliness and corrosion resistance are critical — such as pharmaceutical plants, food processing facilities, electronics assembly lines and clean rooms. Load capacities range from 125 kg to 1,000 kg depending on the profile selected.
Hylo Lifting manufactures aluminium KBK rails in three primary profiles. The KBK-A 100, our lightest profile at 1.2 kg/m, supports loads up to 250 kg over a 4-metre span. The mid-range KBK-A 140 handles up to 500 kg across 5-metre spans. Our heaviest aluminium profile, the KBK-A 200, supports loads up to 1,000 kg with spans of up to 6 metres. Actual load ratings depend on the number of suspension points, trolley type and operating conditions. For loads exceeding 1,000 kg, we recommend our steel KBK rail system, which supports up to 3,200 kg.
Neither material is universally better — the right choice depends on your application. Aluminium KBK rail is superior when low weight, ergonomic manual operation, corrosion resistance and clean room compatibility are priorities. Operators can push loads along aluminium rails with minimal effort, which dramatically reduces fatigue and repetitive strain injuries. On the other hand, steel KBK rail is the better choice when you need load capacities above 1,000 kg, spans longer than 6 metres, or the lowest possible upfront cost. Many Hylo customers use both: aluminium at workstations and assembly lines, steel in heavy-duty zones and warehouses.
Absolutely. Aluminium KBK rails are one of the best overhead crane solutions available for clean room environments. The anodised aluminium surface does not corrode, does not shed particles and does not require lubrication — all properties essential for maintaining the stringent air quality standards of ISO Class 5 through 8 clean rooms. Hylo Lifting has supplied aluminium KBK crane systems to pharmaceutical manufacturers, semiconductor fabrication facilities and medical device companies across India. Our engineering team can design systems that integrate seamlessly with your clean room layout, airflow patterns and contamination control protocols.
Get a free site assessment and custom proposal from our engineering team. We design, manufacture and install complete aluminium KBK crane systems across India.
